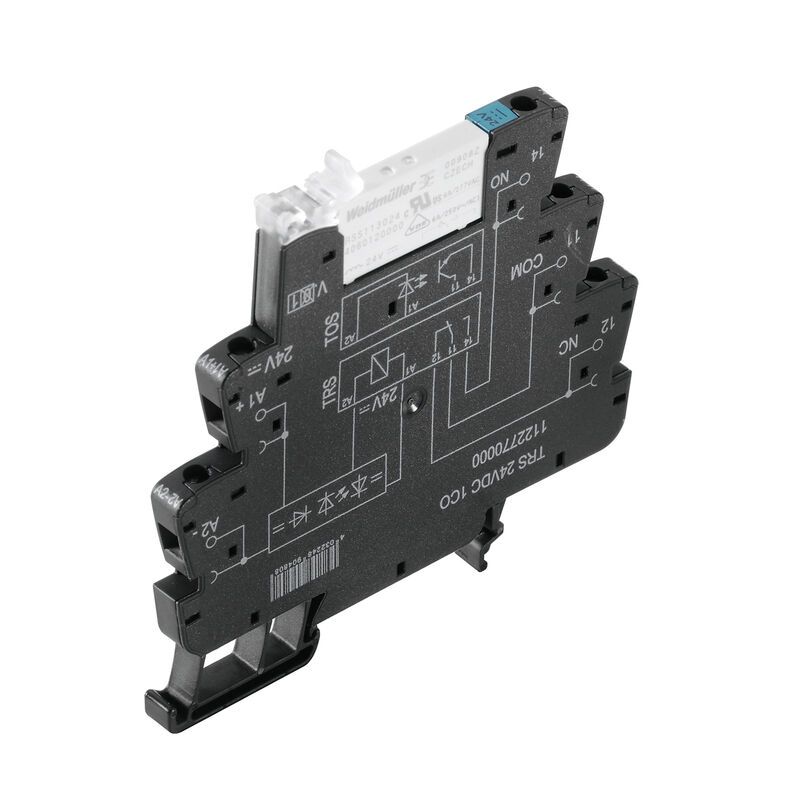

WEIDMULLER RELAY MODULE TRS 24VDC 1CO - P/N 1122770000

Product Overview The 1122770000 is a DIN rail Power Relay with AgNi contact and SPDT contact configuration. The TERM series offers innovative pluggable electromechanical and solid-state relay equipped with one changeover contacts housed in a slim 6.4mm design with matching profiles that can be combined as required in the customer's application and reliably switch loads of up to 8A at 250V. A distinctive status display is available through integrated fiber-optic technology that completely illuminates the ejector. The ejector also ensures the safe removal of the switching element. The versions with single changeover contacts as well as screw clamp terminals have the same profile and can be jumpered with each other with easy to use cross connectors. Green LED status indicator Integrated free-wheel diode and reverse polarity protection protective circuit 16/4VDC Pull-in/drop-out voltage (typical) 7mA/2mA DC Pull-in/drop-out current (typical) 20A/20ms Inrush current <lt/>6ms Switch-on delay <lt/>7ms Switch-off delay 0.1Hz Maximum switching frequency at rated load 5 x 10⁶ switching cycles Mechanical service life ≥5.5mm Creepage and clearance distance (input-output) 6kV (1.2/50µs) Impulse withstanding voltage IP20 Protection rating
