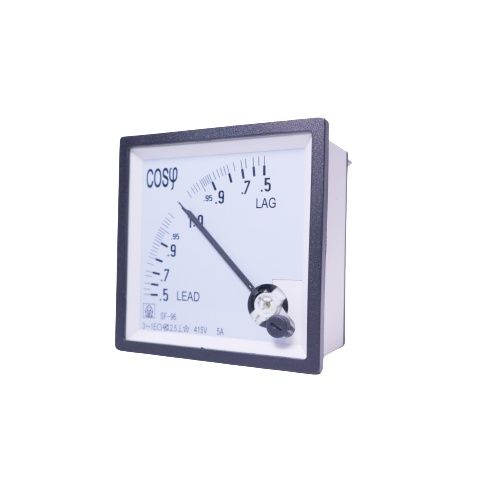

SF-96 COSQ 415V AC POWER FACTOR METER, 1 PHASE, PANEL MOUNT, 96 X 96 MM, ±1.5 % ACCURACY

PRODUCT DESCRIPTION: These devices are measuring the power factor of single or three phases system in 0,5 capacitive – 0,5 inductive range. If the current is higher than 5 A, a secondary current transformer of 5 A shall be used. According to capacitive or inductive load of the system the pointer moves to the left (capacitive) or to the right (inductive) side on the symmetrical scale. The metering changer is installed in the housing. PRODUCT SPECIFICATION: Brand : OEM Model : SF-96 Range : COSQ 415V Available Maximum Value : 0.5 Current Type : AC Cutout Height : 96mm Cutout Width : 96mm Depth : 72mm Meter Accuracy : ±1.5 % Minimum Temperature : -25°C Maximum Temperature : +50°C Measurement Range : 1.0 ? Maximum Value Approvals : CE Minimum Displayed Value : 1.0 Panel Mounting ABS & Polycarbonate Enclosure Case & Terminal Protection Material UL 94VO 1.5 Accuracy class
