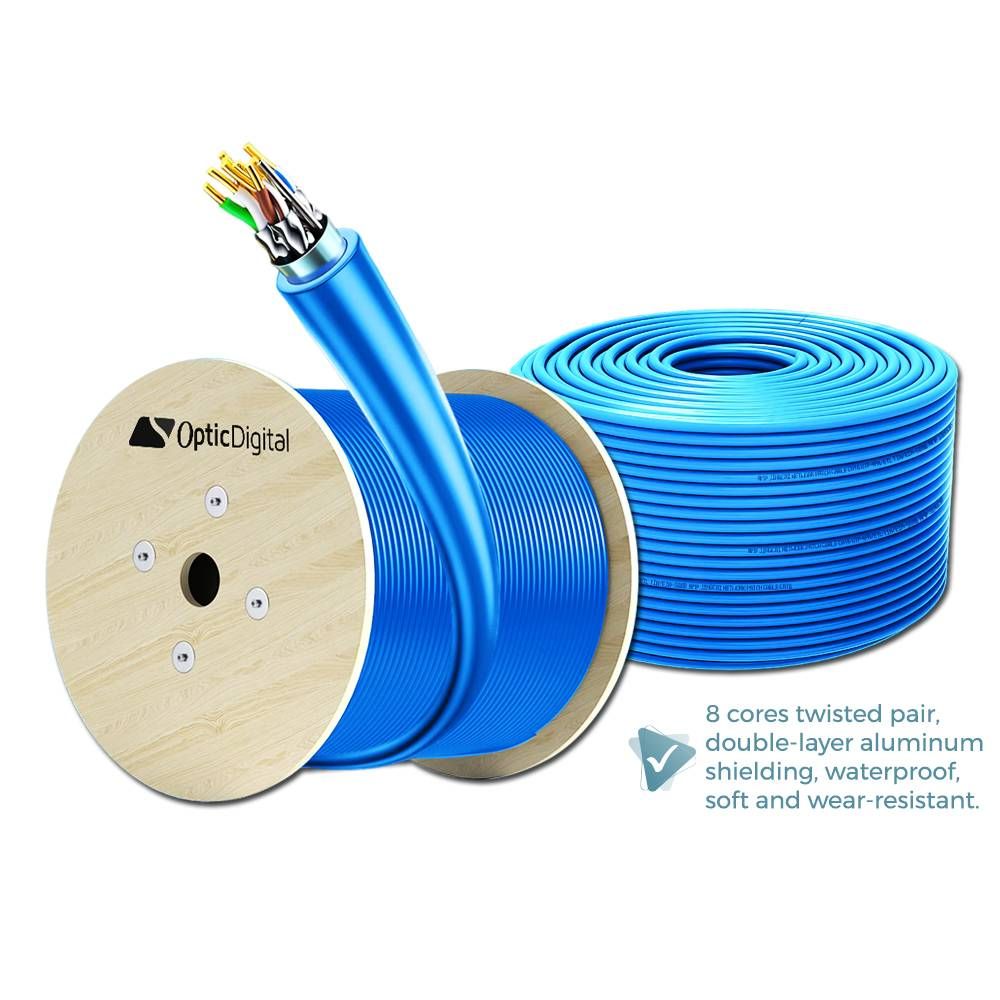

OPTIC DIGITAL 6AF23L CAT6A LSZH DOUBLE SHIELDED NETWORK CABLE

Applications: - Horizontal Wiring in LAN - IEEE 802.3: 10/100/1000 Base-T - IEEE 802.5 16MB - Power Over Ethernet PoE/PoE+ - IEEE 802.3af and IEEE 802.3at Physical Characteristics: - Conductor Material: Solid Bare Copper Conductor Diameter: 0.560mm (±0.005) - Insulation Material Skin-foam-skin PE Overall Diameter 1.330mm (±0.05) - Screening Material AL/Mylar Drain Wire: Yes - Sheath Thickness: 0.55mm (±0.05) External O.D: 7.5mm (±0.5) Surface: Clean Material: LSZH(complies RoHS) Color: Blue - Surface Printing Letter height: 3.0mm (±0.3) Color: Black Print error & Space: ?±0.5%?1m - Color 1. White Blue/Blue 2. White Orange/Orang 3. White Green/Green 4. White Brown/Brown Rip Cord: Yes - Sheath Physical Properties Before Aging Tensile Strength (Mpa) Elongation (%): ?10.0~?125 Aging Period (°C×hrs): 100°C×24h×7d After Aging Tensile Strength (Mpa Elongation (%): ?8.0~?100 Cold bend (-20±2°C×4h) 8×Cable O.D.: No visible cracks - Electrical Characteristics (20°C) 1.0-250.0MHz Impedance(?): 100±15 1.0-250.0MHz Delay Skew (ns/100m): ?45 DC Resistance (?/100m) max: 9.38 DC Conductor Resistance Unbalance (%) max: 5.0
