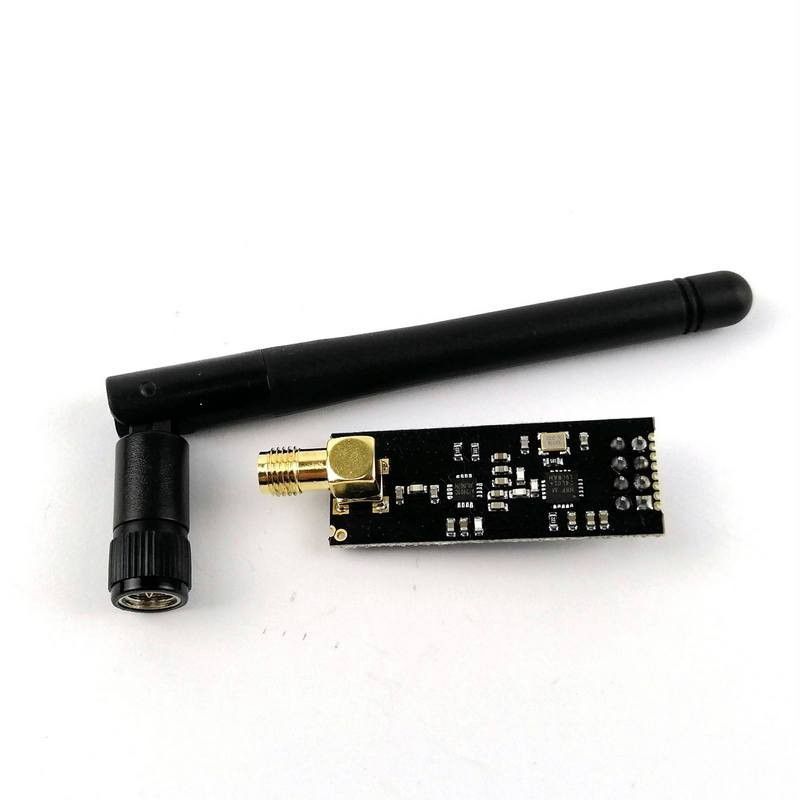

OEM Wireless nRF24L01+ PA/LNA with Antenna

The bi-directional wireless transceiver operates at 2.4GHz ISM band Transmit power is greater than +20 dBm Support six-channel data reception 2Mbit/s speed makes high-quality VoIP possible Low operating voltage: 2.7 to 3.6V Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping. Integrated with high-speed signal processing associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal SPI interface facilitates communication with MCU I/O port. Software programming is fully compatible with NRF24L01+ Module Size: 37.4mm x 16.6mm Possible Applications: Remote control Telemetry Wireless meter reading Access control systems Residential paging Industrial data acquisition systems Wireless tags Identification Contactless RF smart card Small wireless data terminal Fire safety systems Wireless remote control systems Bio-signal acquisition Wireless 232 Wireless 422/485 Specifications: IC: nRF24L01+ Operating Frequency: 2400MHz ~ 2524MHz Modulation: GMSK Transmit power: more than +20 dbm, 50Ω Receiver sensitivity:-95dbm Operating voltage: 2.7V ~ 3.6V Max Emission current: 115mA Max Receive current: 45mA Operating temperature: -45 degrees to +85 degrees Storage temperature: -45 degrees to +125 degrees Gain Of PA: 20 dB Gain Of LNA: 10 dB Packing List 1 x nRF24L01+ PA + LNA module 1 x 2.4GHz SMA Antenna
