OEM Expanded Metal BHL1502 x 4’ x 8’

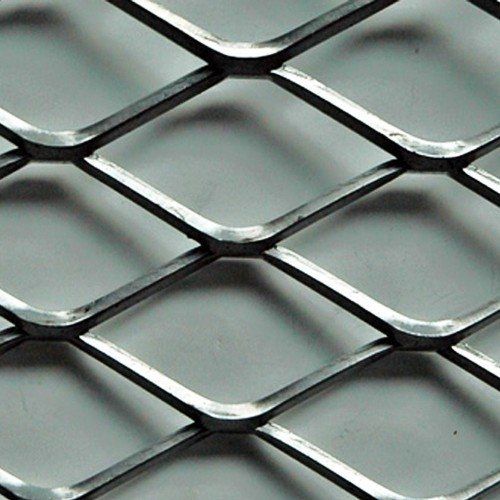

STANDARD EXPANDED METAL Standard expanded metal as it comes from the press. The strands and bonds are set at a uniform angle to the plane on the sheet. This gives added strength and rigidity, as well as skid-resistant surface. GRATING Grating is a standard expanded metal pattern produced from heavier gauge low carbon steel plates. Strands and the openings of grating are considerably larger than other meshes. It is ideal for use wherever a strong, durable, lightweight surface is needed. Although used primarily for pedestrian traffic, grating can accommodate heavier loads if properly supported. MESH SIZE Actual dimensions SWD and LWD. Measured from a point to a corresponding point on the design shown. SWD Nominal dimension Short Way of Design. LWD Nominal dimension Long Way of Design. THICKNESS Gauge thickness of metal expanded. STRAND WIDTH Amount of metal fed under dies to produce one strand.
