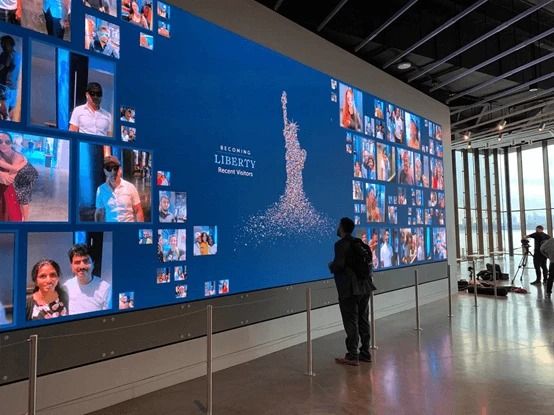

NA INDOOR TRANSPARENT LED DISPLAY SCREEN WITH COMPLETE SYSTEM PROCESSING UNIT

1. SCREEN PARAMETERS - LED Display Size (m): 3.5m(w) x 3m(h) - Optimum Viewing Distance: 4m - Refresh Rate: 3840Hz - Change the Frequency of Detection: 50--60Hz - Input Voltage: AC220V/50Hz - Receiving Card: Huidu HD-R 708 - Video Processor: A3L 2. CABINET SPECIFICATIONS - Pixel Spacing (mm): 3.91 x 7.82 - LED Type: Kinglight 1820 - Module Resolution: 128dots x 16dots - Module Size (mm): 500mm x 125mm 3. CABINET PARAMETERS - Cabinet Size (WxH): 1000mm x 1000mm (6 unit) - Cabinet Size (WxH): 1500mm x 1000mm (3 unit) - Cabinet Resolution: 256dots x 128dots - Pixel Density: 32768 dots/m 4. STRUCTURE SUPPORT - To Construct Structure MS Steel Frame 50mm x 50mm x 1.6mm According LED Cabinet Size 5. CABLING - To Run CAT-6 Cabling for Data Connection Into PVC Conduit - To Run Power Cable from DB to LED - Technical drawing (PE Endorsement) 1 MYR 15,000.00 MYR 15,000.00 6. TESTING, COMMISSIONING & TRAINING : - To Provide Training To Staff Related 7) WARRANTY & DEFECT : - 1 Year Warranty for Module & LED Power Supply. - 1 Year Warranty for Video Processor & Receiving Card. - To Provide FREE Spare Part: 2 Pcs Module, 2 Power Supply & 2 Receiving Cards
