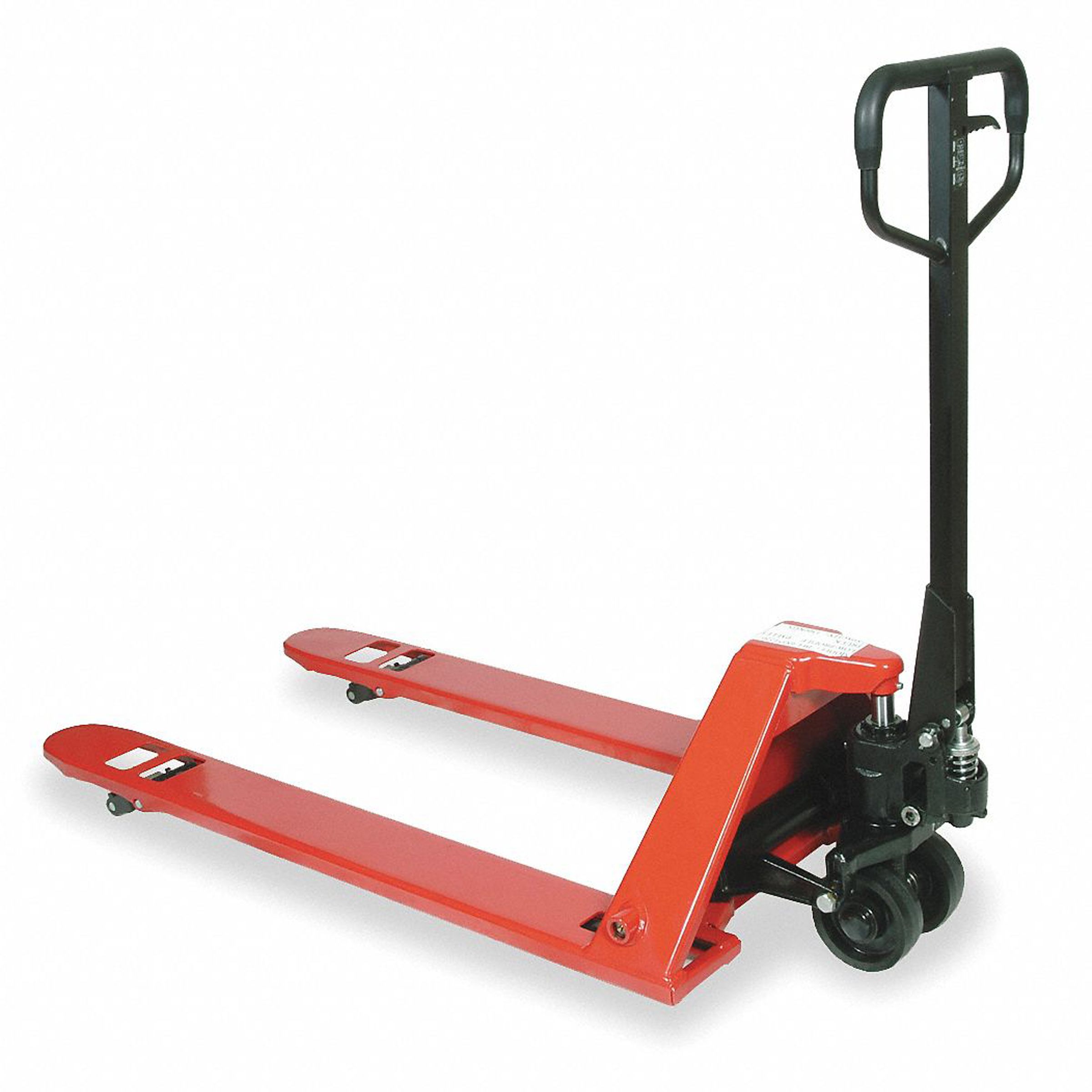

HYDRAULIC HAND PALLET JACK

MODEL: AC-3T-550 / AC-3T-685 CAPACITY(KG) : 3000 / 3000 MIN. FORK HEIGHT (MM): 90 / 80 MAX. FORK HEIGHT (MM): 200 / 190 LIFTING HEIGHT (MM): 110 / 110 FORK HEIGHT (MM): 1200 / 1200 SINGLE FORK HEIGHT (MM): 160 / 160 WIDTH OVERALL FORKS (MM): 550 / 685 FORK WHEEL SINGLE (MM): 80*93 / 74*93 FORK WHEEL TANDEM (MM): 80*70 / 80*70 STEERING WHEEL (MM): 180*50 / 180*50 TRUCK WEIGHT (KG): 73-92 / 73-92 QTY / 20 FEET CONTAINER (PCS): 180 / 144 Standard Hydraulic Pallet Hand Jack is one of the most important for warehousing and material handling. Easy to use and excellent for short distance cargo moving. All castor wheel are removable and easy to replace. The body is designed by the integral steering. Rotating shaft's joint is made of high quality NTN and it allows more flexible and wide open angle at 210 degree Reinforced front extrusion fork for extra loading strength Effortless pallet entry/exit roller to make it easy for push and pull Overload protection design for the oil pump
