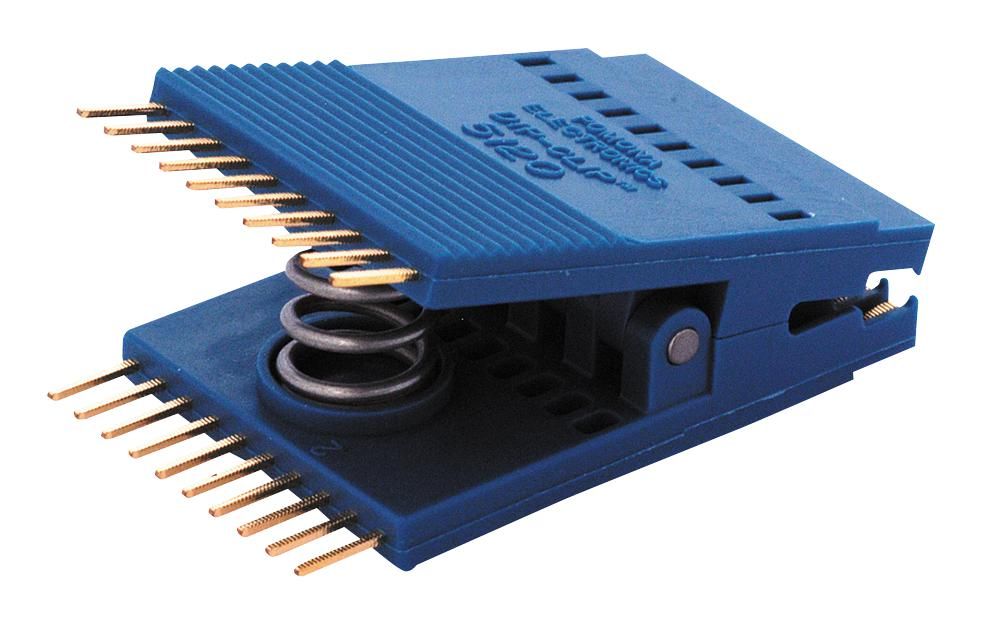

Fluke PICCL 3916A Dip Clip, 16 Pin

Pomona 3916A Standard Dip Clip, 16 Pins w/Nickel Silver Contacts, Blue Contacts (.040" wide on lower end) are serrated for the best electrical contact. .025" X .028" serrated test points on upper end will accept wire wraps or mini test clips. Molded barriers between contacts allows live board connections without accidental shorting of contacts. Can also be used as an insertion tool for DIPs. Contacts are spring tempered Nickel Silver or Gold Plated Beryllium Copper alloy. Oxide penetrating clips have a roughened stainless steel surface treatment. Open back option allows probing on the chip leads while clip is attached. Pomona DIP Clip® test clips are designed for testing dual-in-line IC packages on PC boards. These devices incorporate many built-in features that assure a positive electrical connection as well as hands free testing.
