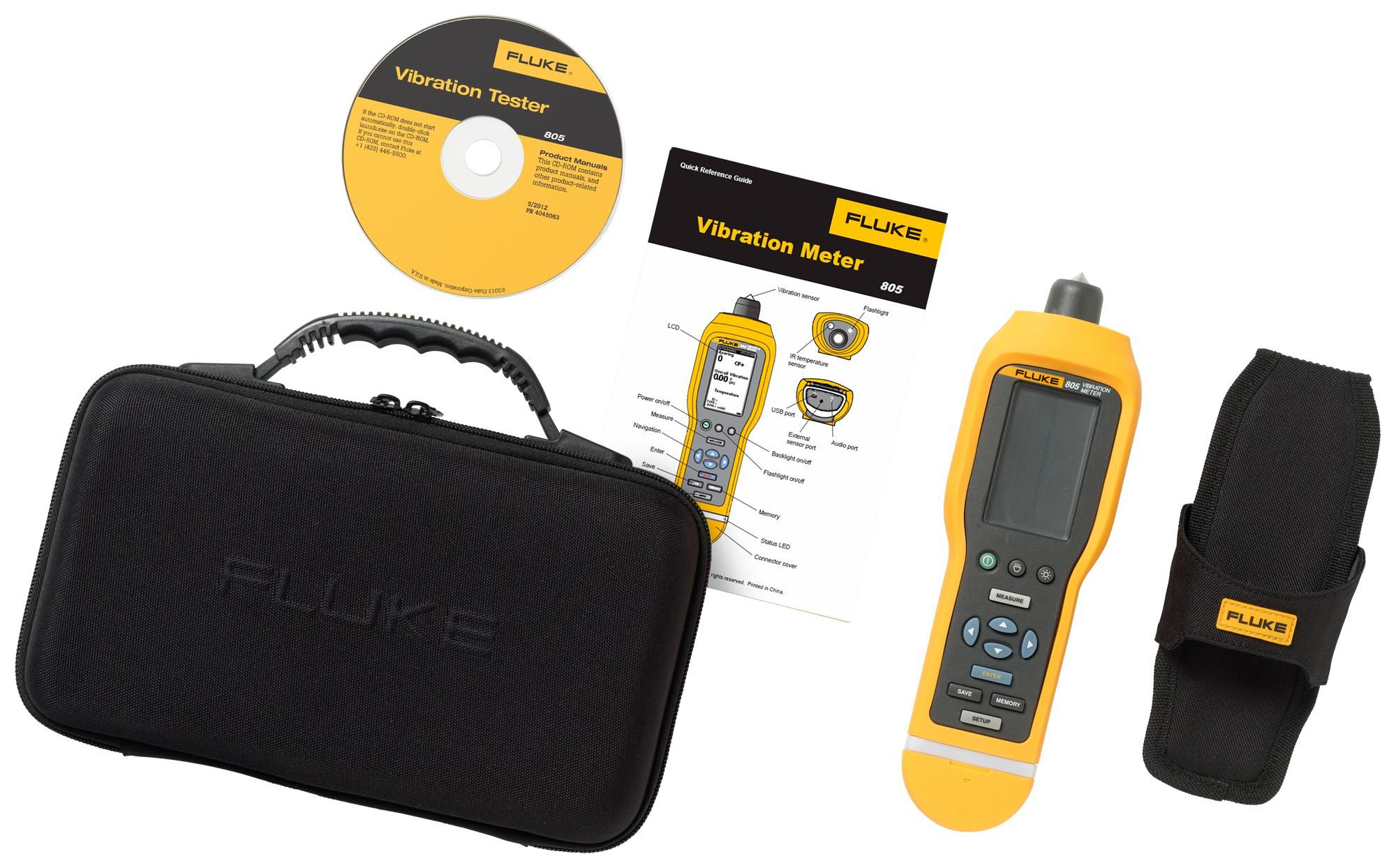

Fluke 805 Vibration Meter

Fluke 805 Vibration Meter Key features Reliable, repeatable, accurate device for checking bearings and overall vibration Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure Provides consistent data quality at both low and high frequency ranges Offers four-level severity scale to assess urgency of problems and bearing condition Product overview: Fluke 805 Vibration Meter The Reliable, Repeatable, Accurate Way to Check Bearings and Overall Vibration Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition. What Makes the 805 the Best Choice? A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable) Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types Straight-forward user interface that minimizes the user inputs to RPM range and equipment type Other useful features: Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz Compares vibration levels with ISO-10816 severity scales Allows you to view trending in Microsoft® Excel using pre-built templates Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements Measures temperature with Spot IR Sensor to increase diagnostic capabilities Holds and saves up to 3,500 measurements in on-board memory Provides external accelerometer support for hard to reach locations Allows you to export data via USB Provides audio output for listening to bearing tones directly Features built-in flashlight for viewing measurement locations in dark areas Provides large high-resolution display for easy navigation and viewing Vibration Meter Low frequency range (overall measurement) 10 Hz to 1,000 Hz High frequency range (CF+ measurement) 4,000 Hz to 20,000 Hz Severity levels Good, satisfactory, unsatisfactory, unacceptable Vibration limit 50 g peak (100 g peak-peak) A/D converter 16-bit Signal to noise ratio 80 dB Sampling rate Low frequency 20,000 Hz High frequency 80,000 Hz Real time clock backup Coin battery Sensor Sensitivity 100 mV g ±10% Measurement range 0.01 g to 50 g Low frequency range (overall measurement) 10 Hz to 1,000 Hz High frequency range 4,000 Hz to 20,000 Hz Resolution 0.01 g Accuracy At 100 Hz ±5% of measured value Amplitude Units Acceleration g, m/sec² Velocity in/sec, mm/sec Displacement mils, mm Infrared Thermometer (Temperature Measurement) Range -20°C to 200°C (-4°F to 392°F) Accuracy ±2°C (4°F) Focal length Fixed, at ~3.8 cm (1.5 in) External sensor Fluke supports but does not provide external sensors Frequency range 10 Hz to 1,000 Hz Bias voltage (to supply power) 20 VDC to 22 VDC Bias current (to supply power) Maximum 5 mA Firmware External interfaces USB 2.0 (full speed) communication Data capacity Database on internal flash memory Upgrade Through USB Memory Up to 3,500 measurements Radiated Emission Electrostatic discharge: burst Standard EN 61000-4-2 Electromagnetic interference Standard EN 61000-4-3 RE Standard CISPR 11, Class A Environmental Operating temperature -20°C to 50°C (-4°F to 122°F) Storage temperature -30°C to 80°C (-22°F to 176°F) Operating humidity 10% to 95% RH (non-condensing) Operating/storage altitude Sea level to 3,048 meters (10,000 feet) IP rating IP54 Vibration limit 500 g peak Drop test 1 meter General Specifications Battery type AA (2) Lithium Iron Disulfide Battery life 250 measurements Size (L x W x H) 24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in) Weight 0.40 kg (0.89 lb) Connectors USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector)
